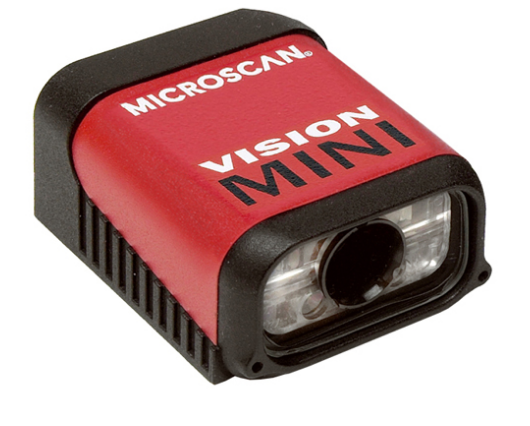

邁思肯Microscan Vision MINI迷你智能相機配件表 |
| Part Number | Description |
| 98-000215-01 | Demo Kit, AutoVISION - supports Vision MINI and Vision HAWK |
| FIS-0210-0001G | MS-Connect 210, Connectivity Box with Display |
| FIS-0210-0002G | MS-Connect 210, Connectivity Box |
| FIS-0210-0003G | MS-Connect 210, Connectivity Box with Display and Ethernet |
| FIS-0210-0004G | MS-Connect 210, Connectivity Box with Ethernet |
| 98-000013-04 | Relay Module, 120VAC, 3 Amp Output, Series 70, Type SM, for MS-Connect 210/MS-890 |
| 98-000013-05 | Relay Module, 240VAC, 3 Amp Output, Series 70, Type SM for MS-Connect 210/MS-890 |
| 98-000013-06 | Relay Module, 24VDC, 3 Amp Output, Series 70, Type SM for MS-Connect 210/MS-890 |
| 61-000127-02 | Cable, Quadrus MINI to MS-Connect 210, 6 ft |
| FIS-0001-0035G | IC-332, Connects MINI to IB-131 |
| 99-000018-01 | IB-131, Interface Box |
| 98-000039-02 | Kit, IB-152, DB25 Plug Terminal Block, DB25 Gender Changer |
| 61-300026-03 | Cable, Communication, DB-25 Plug to DB-9 Socket, 6 ft |
| 61-100029-03 | Cable, IB-131 Daisy Chain, 1 ft |
| 20-500013-01 | DeviceNet Protocol Box |
| 61-000011-02 | Cable, MS-820 to IB-131 (also use for MS-3, 4, 9, 710 and MINI Extension) |
| 98-000098-01 | Kit, Quadrus MINI Diffuser |
| Power Supply |
| 97-000012-02 | 100-240 VAC, +24VDC, TRK 3Pin, USA/Euro Plug |
| Mounting and Connectors |
| 98-000048-01 | Mounting Arm/Adapter Kit, 4 inch, Vision MINI |
| 98-000054-01 | Kit, Mounting Stand Base Plate, Vision MINI |
| 98-000053-01 | Extension Kit, 4 inch, Vision MINI |
| 98-000053-02 | Extension Kit, 3 inch, Vision MINI |
| 98-000060-01 | Kit, Bracket, Side Mount, Vision MINI |
| 98-000059-01 | Kit, Bracket, Angle Mount, Vision MINI |
| 98-000057-01 | Kit, Bracket, Through Hole Mount, Vision MINI |
| 98-000088-01 | Kit, Right Angle Mirror |
| 20-610024-01 | Trigger Connector for IB-131, 4-pin Plug |
| 20-610020-01 | Power Connector for IB-131, 3-pin Socket |
| 99-000055-01 | Accessory, Bracket, DOAL 50 to MINI |
| 99-000057-01 | Accessory, Bracket, DOAL 75 to MINI |
| 99-000059-01 | Accessory, Bracket, DOAL 100 to MINI |
| 99-000053-01 | Accessory, Bracket,R-60/70 to MINI |
| 99-000054-01 | Accessory, Bracket,R-100 to MINI |
| Package Detector/Sensor |
| 99-000017-01 | Photo Sensor, Visible, NPN, Dark On |
| 99-000017-02 | Photo Sensor, Visible, NPN, Light On |
| 99-000019-01 | Photo Sensor, Visible, NPN, Light On, 5VDC |
